About this app
Made for a clear purpose.
Ohmlattice: Bench Reference is a private, offline electronics workbench for identifying components, checking pinouts, solving circuit values, and organizing bench notes.

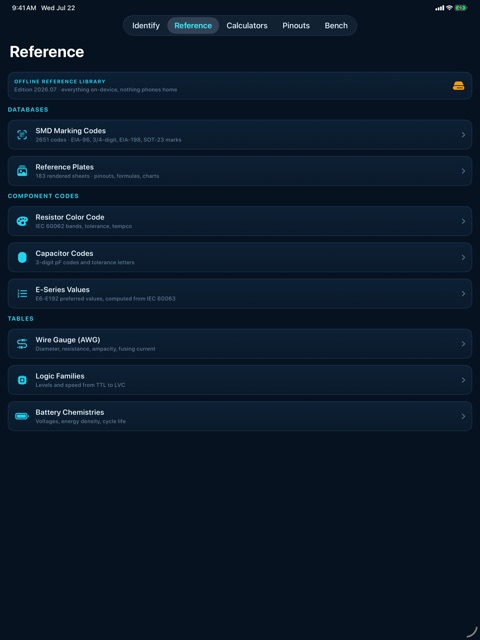

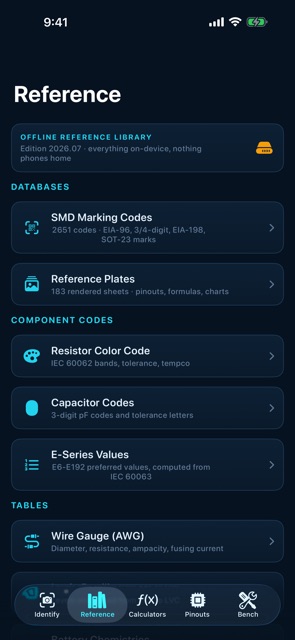

BENCH-READY TOOLS - Identify resistor color bands with the camera or enter bands manually - Look up SMD markings with package-aware search - Browse a vector pinout atlas for common ICs, connectors, and headers - Use more than 40 circuit and design calculators - Explore live filter plots, timing circuits, op-amp values, and trace-width estimates - Decode resistor, capacitor, and inductor markings, including EIA-96 - Search the bundled reference library completely offline - Save parts and notes into local project lists and export them
ONE-TIME AND PRIVATE - One paid download; no subscription or in-app purchase - No account, advertising, analytics, tracking, or developer-operated service - Reference data and calculations work offline - Camera access is optional and used only for an identification action you start - Your work stays on the device unless you deliberately export it
Engineering reference aid only. Confirm pinouts, limits, tolerances, thermal behavior, and safety requirements against current component datasheets and applicable standards before building or servicing equipment.
